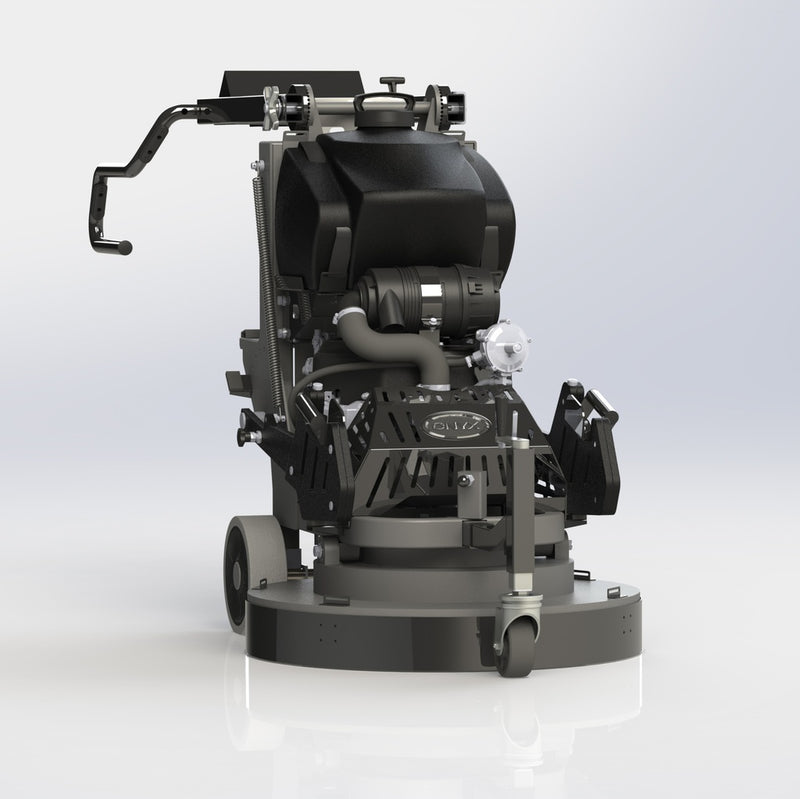

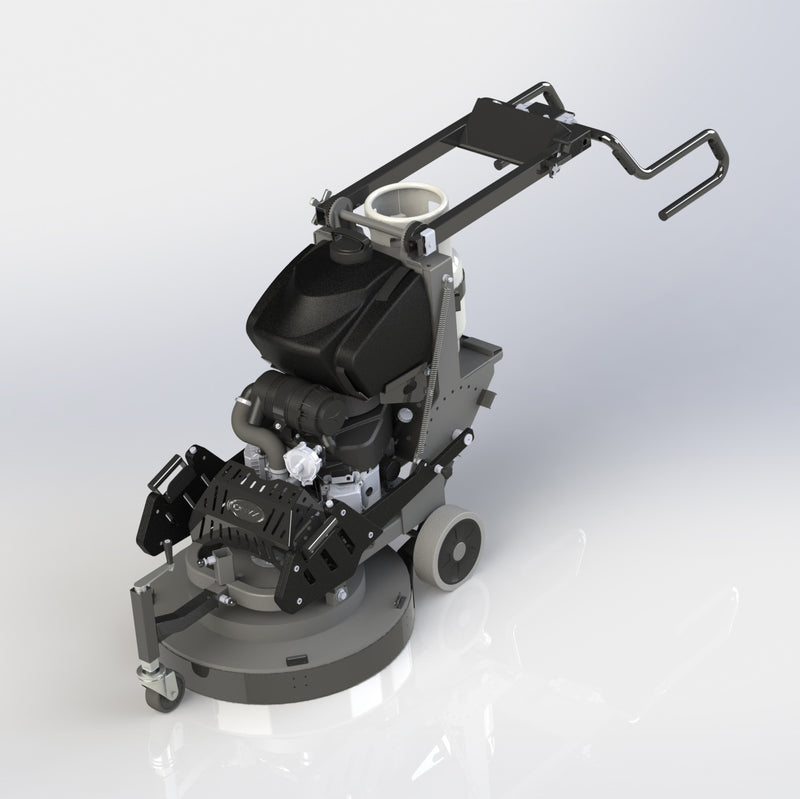

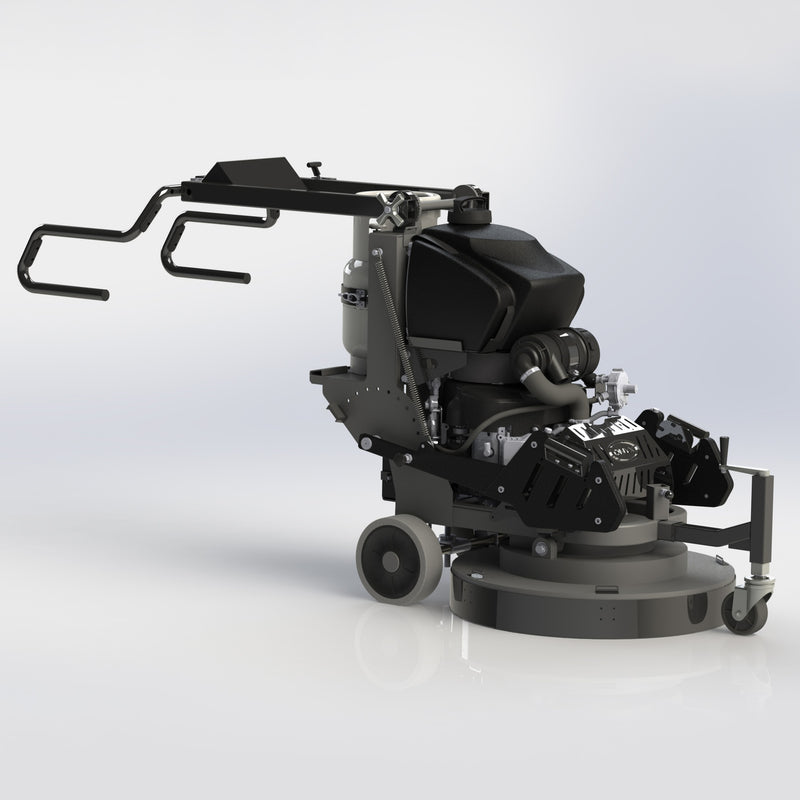

Onyx Z5 30" Propane Planetary Floor Machine
The Onyx Z5 30-inch propane planetary floor machine is designed for high-performance concrete grinding, polishing, stripping, and surface preparation.
Its powerful propane engine provides excellent mobility and extended operation, making it ideal for commercial and industrial flooring applications.
The advanced planetary drive system delivers smooth operation, even pressure, and consistent results across large floor surfaces.
The Z5 is suitable for concrete, terrazzo, and natural stone, while its adjustable water feed and dust port allow for both wet and dry operation.
Designed for easy handling, the Z5 features an ergonomic handle, foldable design, rock-back tooling access, transport caster, and integrated headlight.
Its combination of power, versatility, and maneuverability makes it an efficient solution for demanding floor restoration and polishing projects.

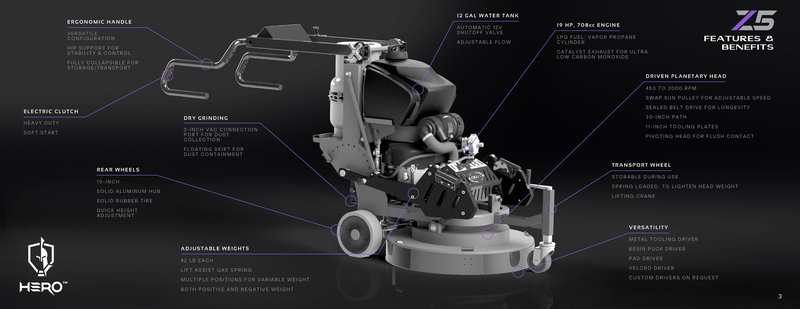

Key Features
Ergonomic Handle: Adjustable handle with integrated hip support for improved comfort, control, and maneuverability.
Simplified Polishing System: HERO polishing system provides an efficient, proven process for consistent professional results.
Precision Water Control: Operator-adjustable dial provides precise control over motorized water flow.
Pivoting Head: Maintains consistent floor contact for smooth, even coverage.
Flexible Head Skirt: Non-marking, non-scratching skirt helps contain dust during dry applications and control splatter during wet work.
Easy Rock-Back Design: Balanced construction allows one operator to easily tilt the machine for tooling changes and transport.
Heavy-Duty Frame: Rugged steel construction provides durability for demanding applications.
Sealed Planetary Drive: Belt-driven and sealed system is designed for long-lasting performance.
Adjustable Swing Weights: Gas-spring-assisted weight system offers multiple positions for positive or negative weight adjustment.
Front Transport Caster: Makes machine transport easier and stores conveniently on the machine when not in use.
Dust Port: Connects to industrial dust extractors for dry grinding and polishing applications.
Electric Clutch: Heavy-duty clutch with soft-start technology helps improve performance and extend belt life.
Versatile Tooling Compatibility: Works with polishing pads, resins, metal-bond tooling, and stripping brushes, with adjustable speed and weight for different applications.
Specifications
Product Function
Floor Polishing, Honing, Grinding, Stripping, Deep Cleaning, Rejuvenation
Working Width
30 inches
Pad / Brush Size
11 inch x 3
Power
LX700 19 HP Propane Engine
Run Time
6 Hours Per 20 lb Propane Cylinder
Productivity Rate
30,000 Sq Ft per hour for deep cleaning/stripping, 4,000 Sq Ft per hour per polishing step
