International Ozone Total Zone TZ-4 Ozone Generator 6,000 mg/hr Up to 24,000 sq/ft

International Ozone Total Zone TZ-4 Ozone Generator 6,000 mg/hr Up to 24,000 sq/ft

The Total Zone TZ-4 is a commercial-grade ozone generator designed to eliminate odors and purify air in unoccupied industrial and commercial spaces.

Built with a patented "SP-ARC" (Silicate Polarized Arc) generator technology, the TZ-4 produces variable ozone output ranging from 1,500 to 6,000 milligrams per hour or treating up to 24,000 sq./ft, allowing users to adjust output from 25% to 100% depending on the severity of the odor or air quality issue.

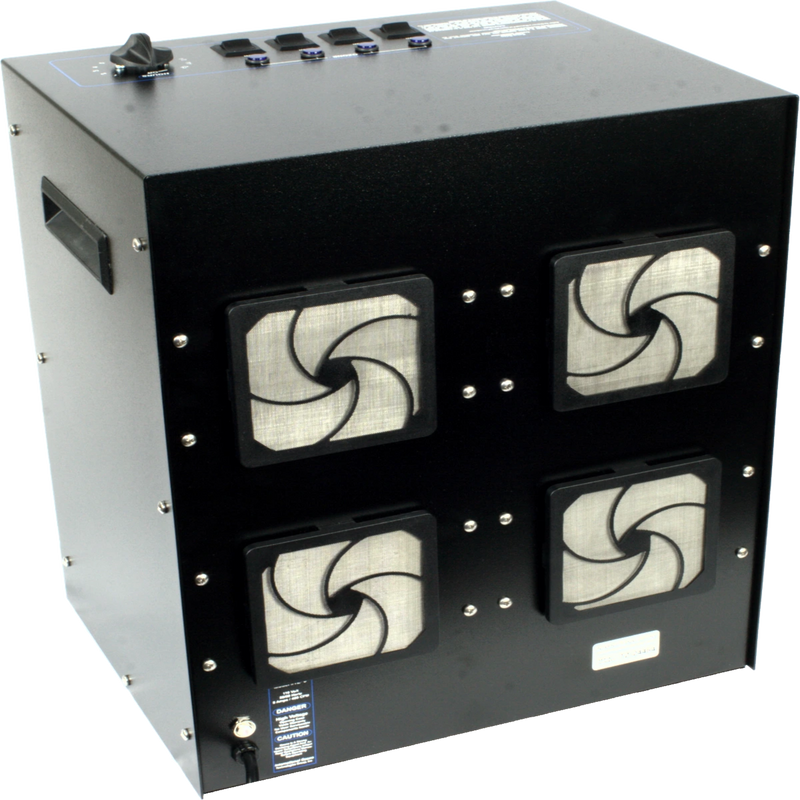

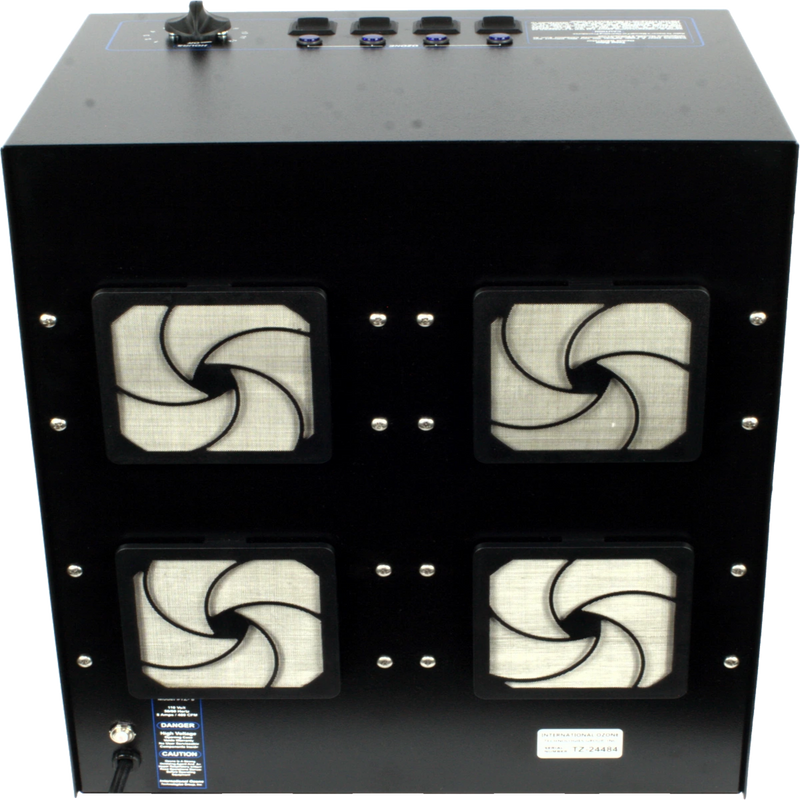

The unit is powered by four 100 CFM fans with sealed ABEC #5 bearings, drawing air through four washable stainless steel intake filters rated at 45 pores per square inch. Ozone is distributed through the space to break down odor-causing substances at the molecular level, converting foul-smelling compounds into non-odorous substances before reverting back to oxygen.

This process is effective against odors from smoke, mold, mildew, pets, cooking, fire and water damage, and other sources, while also deactivating mold, mildew, fungus, bacteria, and viruses.

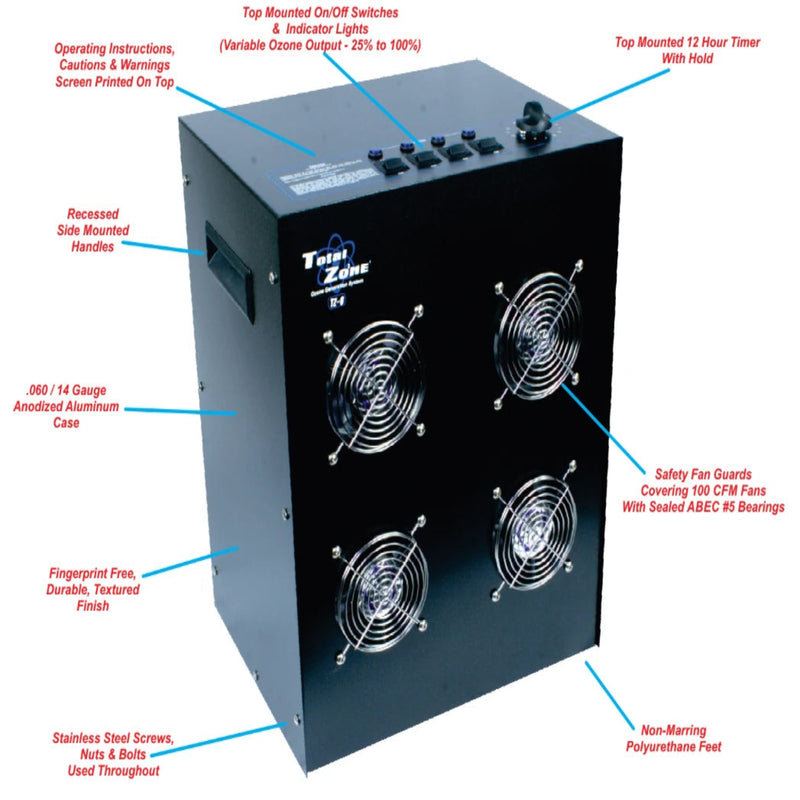

Operation is controlled through top-mounted on/off switches and indicator lights, along with a top-mounted 12-hour timer with hold function for extended or continuous treatment cycles. The TZ-4 is housed in a .060 / 14-gauge anodized aluminum case with a fingerprint-free, textured powder coat finish, built for durability in demanding environments.

Additional features include recessed side-mounted handles for portability, a rear-mounted resettable circuit breaker, an 8-foot 18/3 grounded power cord with strain relief, and stainless steel screws, nuts, and bolts used throughout construction. The unit measures 12 1/2" x 16" x 20" and weighs 26 lbs. 5 oz., and runs on 110V / 3A power at 50/60 cycles. The TZ-4 is backed by a one-year parts and labor warranty.

Key Features

• Patented SP-ARC Technology: Utilizes Silicate Polarized Arc generator technology to produce higher ozone output with little to no maintenance.
• Variable Ozone Output: Adjustable from 25% to 100%, producing 1,500 to 6,000 milligrams of ozone per hour to match treatment needs.
• Four High-Performance Fans: Equipped with four 100 CFM fans featuring sealed ABEC #5 bearings for reliable, continuous airflow.
• Washable Intake Filters: Four stainless steel intake filters rated at 45 pores per square inch, designed for easy cleaning and reuse.
• 12-Hour Timer with Hold: Top-mounted timer allows for scheduled treatment cycles or continuous operation as needed.
• Durable Aluminum Case: Constructed from .060 / 14-gauge anodized aluminum for long-lasting, industrial-grade durability.
• Fingerprint-Free Textured Finish: Powder-coated exterior resists fingerprints and smudges while maintaining a clean appearance.
• Rear-Mounted Circuit Breaker: Resettable circuit breaker provides added protection and convenience during operation.
• Heavy-Duty Power Cord: Includes an 8-foot 18/3 grounded power cord with strain relief for safe, dependable power connection.
• Portable Design with Recessed Handles: Side-mounted recessed handles make the unit easy to transport between locations.

Specifications

PRODUCT DOCUMENTS

Product Brochure (PDF)

Operator's Manual (PDF)

WARRANTY

1 Year Parts & Labor

This product comes with a full manufacturer's warranty. All warranty claims are handled directly by the manufacturer.

For specific warranty details, please contact us at (888) 758-6697 or email support@titancleaningsupply.com
